Manufacturing Tolerance

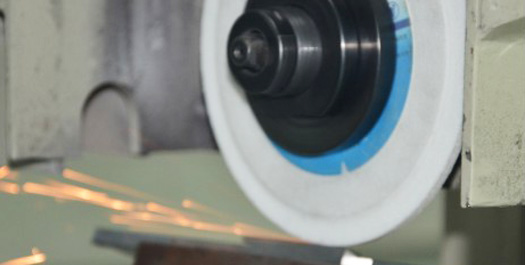

Grinding Tolerance
| 1、 | Appearance tolerance +/-0.001mm |
| 2、 | For groove: the min width 0.01mm and depth 5.0mm |

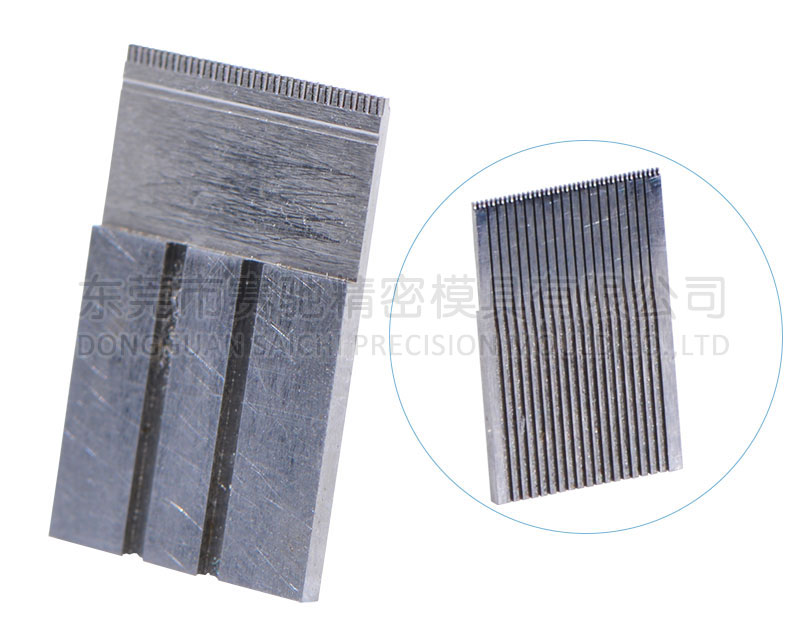

| 3、 | Thin tooth: depth 0.18mm, height 8.0mm, width 5.0mm |
| 4、 | Parallel: 0.002 max, if cavity parts or insert parts, 0.001 max |

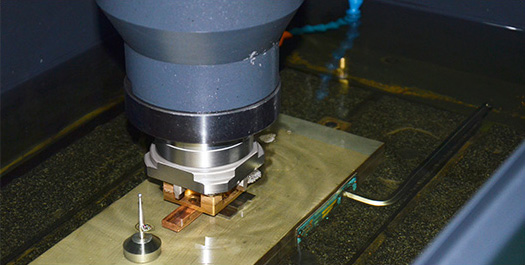

EDM Tolerance
| 1、 | Manufacturing tolerance: +/-0.003mm |
| 2、 | Radian and chamfer: 0.02mm |
| 3、 | Roughness would depend on drawings--max Ra 0.04 |
| 4、 | Planeness within 0.002mm |

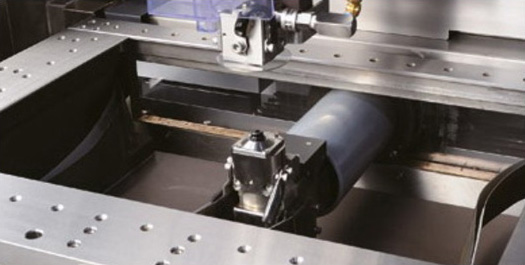

Wire Cut Tolerance
1、Size tolerance: +/-0.002mm
2、The min radian: 0.05mm
3、The max height: 160mm
Company Profile

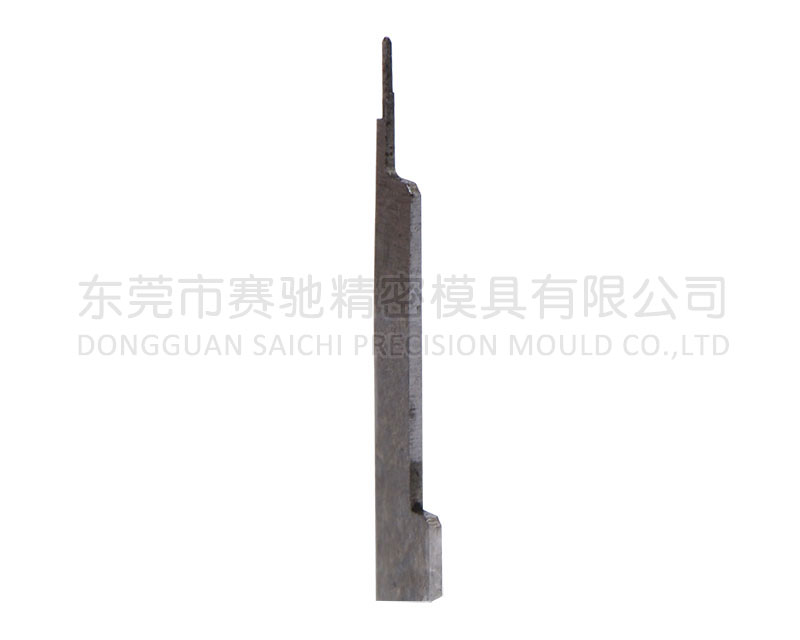

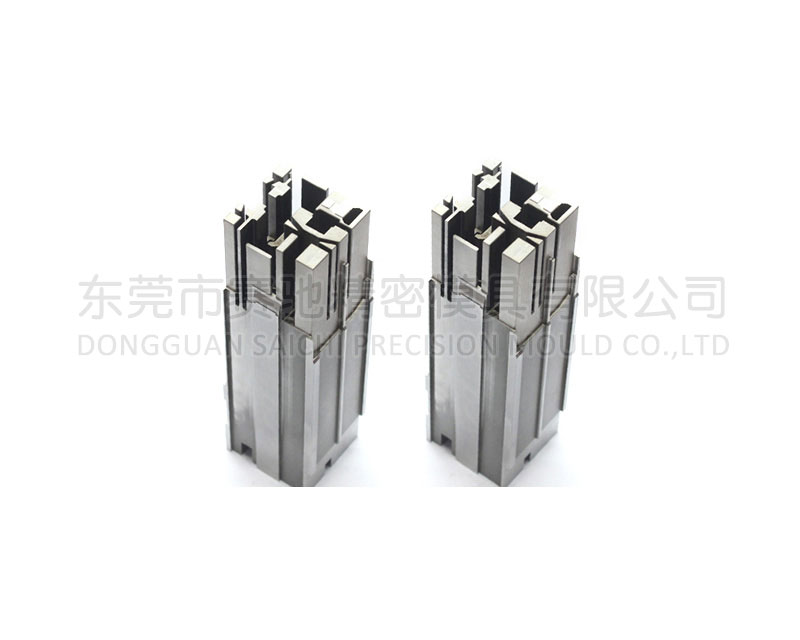

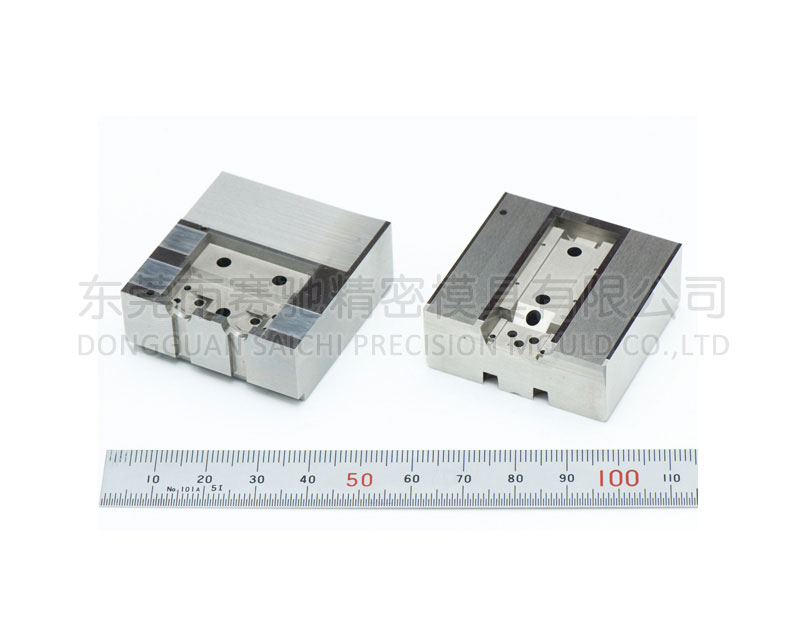

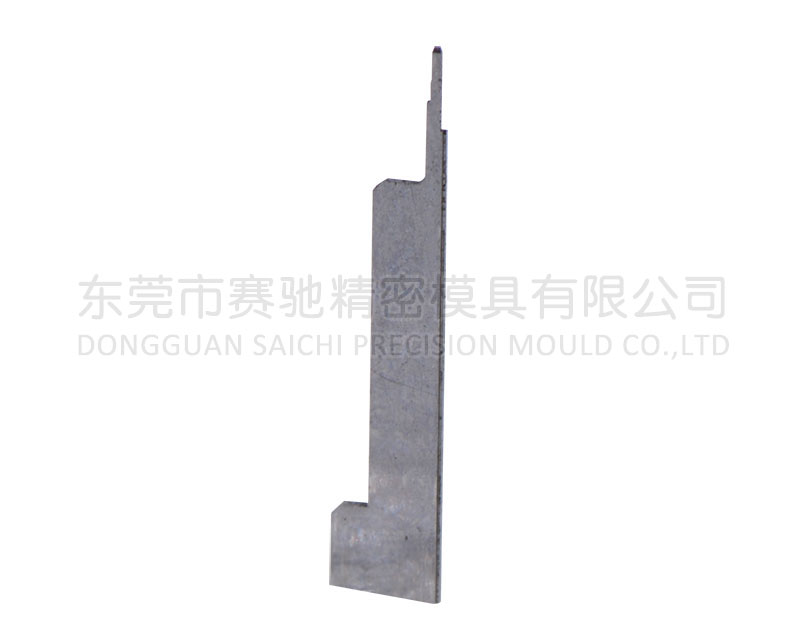

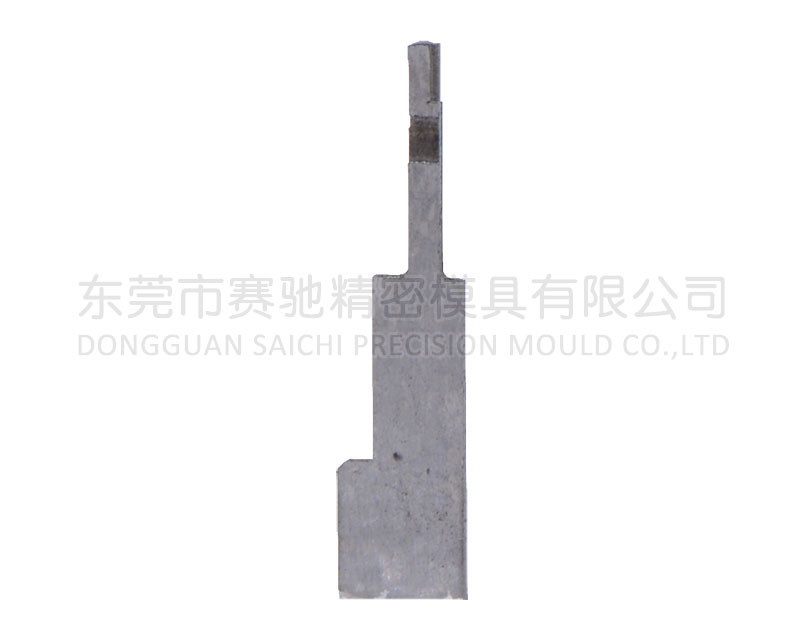

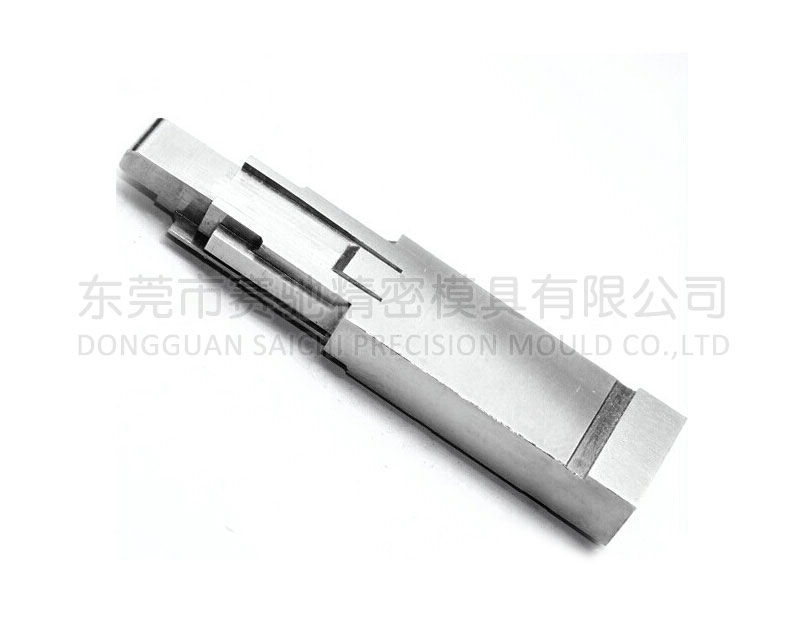

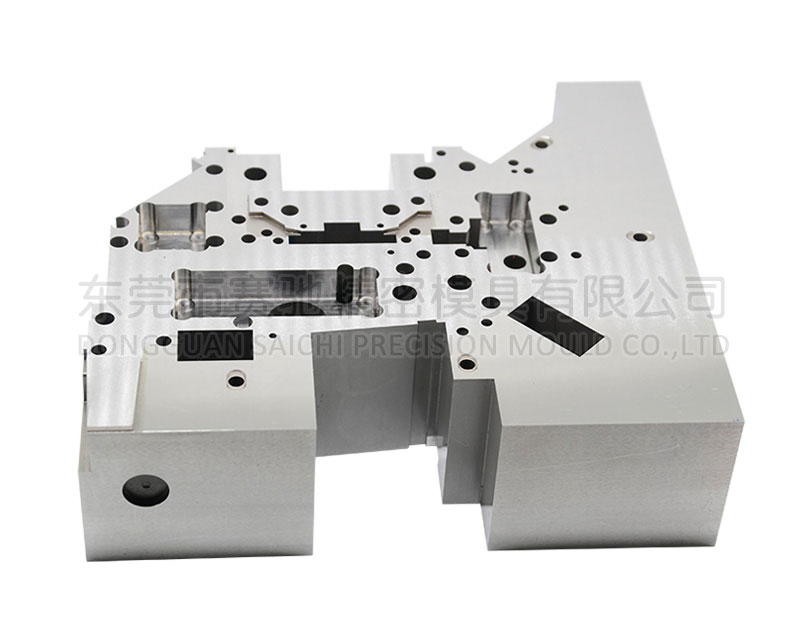

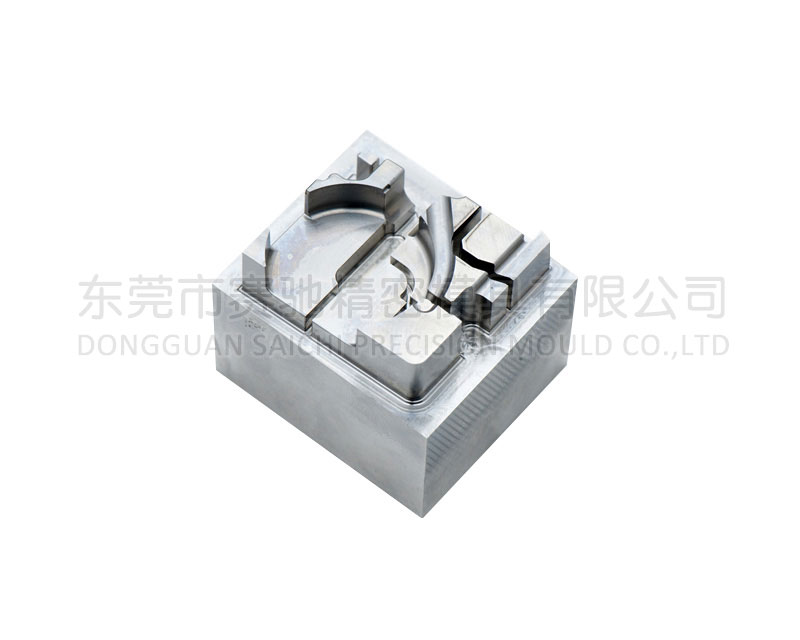

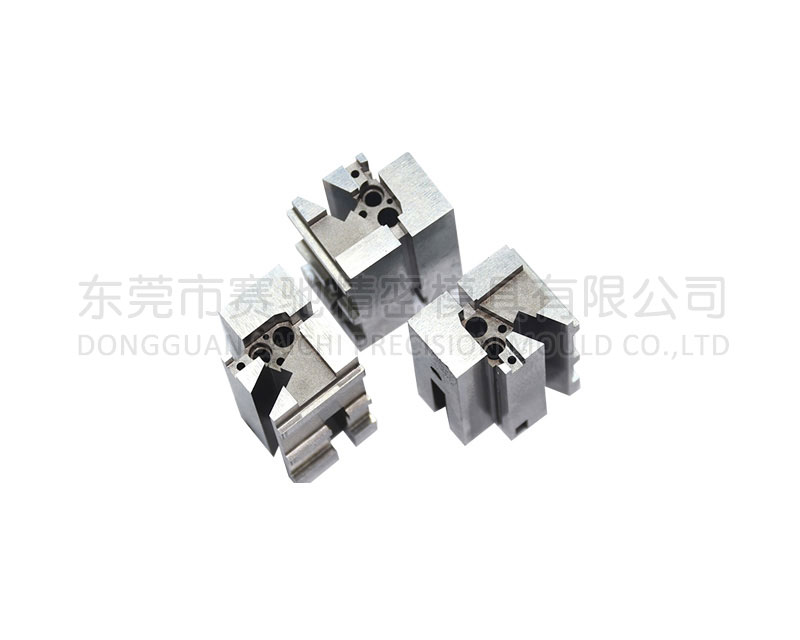

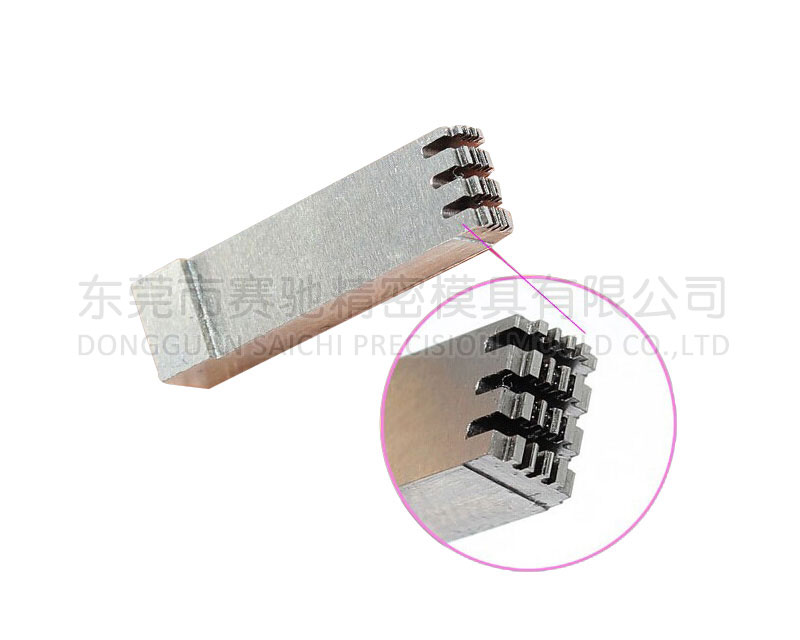

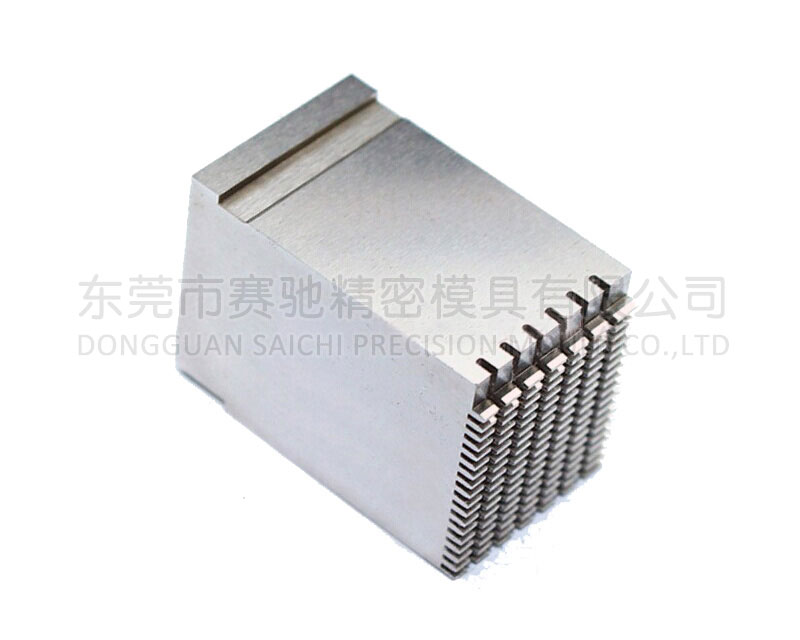

Manufacture the precision mold cavities and parts
Saichi was established at 2010, and is located in Chang'an town, Dongguan, where is rather famous because of mold manufacturing around the whole China.
The primary business: according the drawings from Customer, manufacture the precision plastic mold cavities and parts.
The end-user: TE JAE JST IRISO OMRON EPSON HONDA TAKAHATA TOKAIRIKA.
The immediate response ability is the biggest preponderance in saichi.

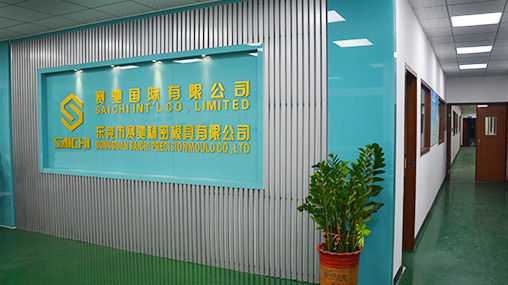

SAICHI INT’L CO., LIMITED
